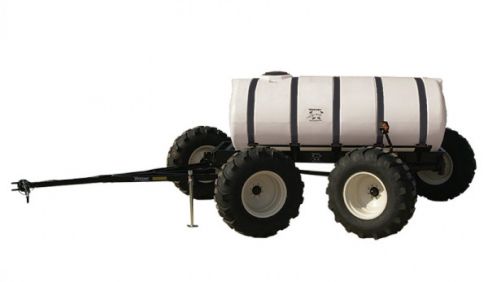

Yetter 2000 Series All Steer Cart

New Products / Yetter / Fertilizer Equipment / All-Steer Cart / 2000 Series All Steer Cart

Double tap to zoom



Features

  • 120" tread width offers outstanding load stability while allowing the axles to straddle the rows (other row spacing available)
  • Low-profile tank design lowers center of gravity
  • Front and rear axles pivot on greasable fifth wheels
  • Front axle pivots up to 10° up or down from the center line to relieve stress using dual-pivot design
  • Spring-loaded and self-engaging Sure Lock allows for quick change from four-wheel to two-wheel steering
  • 18.4-26/12-ply industrial tires provide needed clearance for side-dress operations
  • Standard hazard warning lights and SMV emblem
  • Dual-tank model carries two products for split application or can be plumbed to increase single product capacity
  • Available with black carts and white tanks or with green carts and yellow tanks

Specifications

  • Single-tank capacity: 1,600 gallon
  • Dual-tank capacity: 1,600 + 400 gallon
  • Maximum load: 30,000 lbs. (including cart)
  • Axle: Standard for 30" rows; spacer kits available for 22", 36", and 38" rows
  • Tires: Titan® 18.4-26/10-ply industrial lug with 26" ground clearance
  • Spindles: 3" bolt-on (8)
  • Weight, 2000 All Steer with tires: 4,300 lbs.
  • Weight, 1600 All Steer with tires: 4,100 lbs.
  • Width:  138"
  • Height: 90"
  • Length, front tire to back tire: 177"
  • Length, tongue retracted: 289"





AVAILABLE CONFIGURATIONS 2,000 Gallon Dual Tank (1,600 gallon + 400 gallon) 1,600 Gallon Single Tank
Tank + cart(s) X X
Cart w/ saddles X X
Cart less saddles   X
Green cart/yellow tank X X
Black cart/white tank X X
Split application capable X   Â
