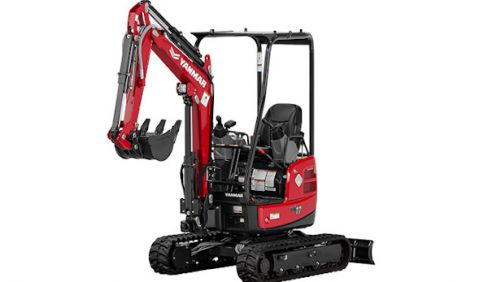

Yanmar ViO17-A

Double tap to zoom

ViO Series ViO17-A
Overview:
No Space. No Problem.
The ViO17-A goes almost anywhere and works efficiently in tight, narrow areas. Our most compact zero tail swing mini excavator goes where larger excavators can’t, and works easily against walls or buildings. But its small stature doesn’t sacrifice power. The 14.5-hp final Tier 4 diesel engine provides the power you need for the toughest jobs, with dramatic lifting capacity and bucket digging force that belies it’s size. Plus YANMAR’s unique, sturdy variable undercarriage provides flexibility, stability and safety.
- Less
No Space. No Problem.
The ViO17-A goes almost anywhere and works efficiently in tight, narrow areas. Our most compact zero tail swing mini excavator goes where larger excavators can’t, and works easily against walls or buildings. But its small stature doesn’t sacrifice power. The 14.5-hp final Tier 4 diesel engine p... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
True Zero Tail Swing
Take on more jobs in tighter spaces. With true zero tail swing technology, no part of the ViO17-A housing extends beyond the tracks, so you can work efficiently almost anywhere, with less damage to both the machine and the worksite. Plus, you enjoy better visibility for increased performance and safety.
Unbeatable Track And Undercarriage Flexibility
Tracks hydraulically retract to 37 inches for traveling through narrow passageways, and expand to 49 inches for grater stability while digging. Plus, the folding blade provides even more flexibility.
Pilot Joystick Controls
Joystick pilot controls with control pattern change are standard equipment on the ViO17-A. The easy-to-access valve lets you switch from excavator to backhoe control in just seconds. The wrist control lever and ergonomically designed armrest provide comfortable, easy operation, designed to significantly reduce fatigue on long tough workdays.
Specifications
Model | ViO17-A |
Operating Weight | |
Rubber track lbs (kg) | 3836 (1740) |
Engine | |
Type | Water-cooled 3-cycle diesel |
Model | YANMAR 3TNV74F-SPBV |
Output HP (kW)/rpm | 14.5 (10.8) / 2400 |
Performance | |
Max Digging Force, Bucket / Arm lbs (kN) | 3418 (15.2) / 1918 (8.5) |
Traveling Speed MPH (km / h) | 2.7 / 1.3 (4.3 / 2.1) |
Swing Speed RPM | 9.5 |
Boom Swing Angle, (L / R) degrees | 42°/65° |
Ground Contact Pressure (Rubber Track) PSI (kPa) | 4.1 (28.6) |
Hydraulic System | |
Pump Capacity GPM (L / min) | 4.6 + 4.6 + 3.5 + 2.6 (17.6 + 17.6 + 13.2 + 11.2) |
Main Relief Set Pressure PSI (MPa) | 2986 (20.6)x2, 2417 (16.7)x1, 427 (29)x1 |
Undercarriage | |
Track Type | Rubber |
Blade Dimensions | |
Width x height ft-in (mm) | 4'2" / 3'1" x 9" (1280/950x 235) |
Fuel tank capacity Gals (L) | 5.3 (20) |
