Mi-T-M Gasoline Belt Drive - JCW-3504-2MSB
/ NOT AVAILABLE

Double tap to zoom

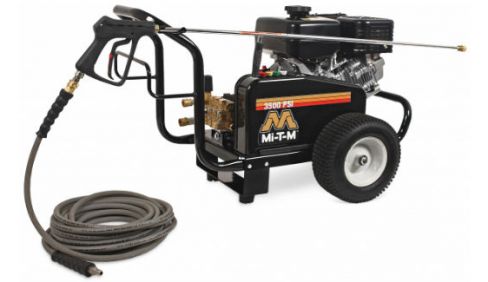

JCW Series Gasoline Belt Drive - JCW-3504-2MSB
Overview:
The belt driven JCW Series is designed for industrial cleaning jobs. It can easily handle tough and demanding jobs on construction jobsites, agricultural locations or commercial cleaning applications.
Share This Product:
Features
Pump: Belt drive triplex piston AR pump with ceramic plungers · Adjustable pressure · Stainless-steel and brass Mi-T-M unloader · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection
Engine: Performance-proven Subaru OHC engine with low-oil protection
Frame: Powder coated steel frame and base plate with 1-1/4-inch tube handles · Convenient gun/wand holder and hose wrap · Solid steel threaded axle · Flat-free tires · Dual rubber isolators · Two-piece belt guard with 1/4-turn release for quick access to belts
Component: Dual cogged belt drive system for increased belt life
Unit Includes: Quick connect nozzles (0º, 15º, 25º and 40º) · 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors · Professional-grade insulated trigger gun with safety lock-off · 48-inch lance with rubber grip
Specifications
Displacement/Engine | 404cc Subaru OHC |
PSI | 3500 |
GPM | 3.7 |
Weights & Dimensions | |
Net Weight | 191 lbs. |
Shipping Weight | 245 lbs. |
Length | 39.5 in. |
Width | 28.5 in. |
Height | 26 in. |
