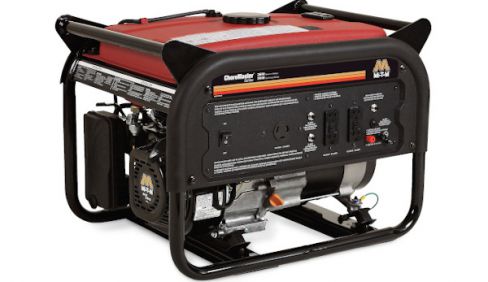

Mi-T-M GEN-3600-0MM0

New Products / Mi-T-M / Industrial / Generators / 3000 - 5000 Watts Generators / GEN-3600-0MM0

/ NOT AVAILABLE

Double tap to zoom



Features

Alternator: Total harmonic distortion (THD) less than 6% · Copper and aluminum windings

Frame: Low profile, compact design · Powder coated wraparound frame with 1-inch steel tubing

Components: Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Large low tone mufflers · Engine on/off switch · Fuel shut-off valve · DC/battery charging

Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.

Specifications

Max. AC Output 3600 watts
Rated AC Output 3000 watts
Displacement/Engine 212cc Mi-T-M OHV
Alternator Brushed 120V, 60Hz
Max. Amps (120V/240V) 30
Cont. Amps (120V/240V) 25
Receptacles (2) 120V, 20A GFCI duplex, (1) 120V, 30A twist lock
Circuit Breakers (1) Main circuit breaker, (2) 20A circuit breaker single pole, (1) 10A DC breaker
Rated Speed 3600 RPM
Fuel Capacity 4.0 gallon
Run Time (at full load) 8.5 hours
Weights & Dimensions
Net Weight 102 lbs.
Shipping Weight 134 lbs.
Length 24.9 in.
Width 17.6 in.
Height 17.9 in.
