Cable truss system - provides stability for heavy loads
Each cable works on a three point system to eliminate tube sag between lock points
Side cables located at main auger to reduce tube sway
Hydraulic worm gear winch located at the hopper lift arm
Heavy duty gearboxes
High capacity 16" diameter mechanical drive swing auger
Head-end features a heavy duty thrust bearing
Product overflow doors located at the discharge end of the auger - prevents auger plugging when the bin is full
Electric mover on swing hopper (optional)
1000 rpm pto speed with a speed reducing gearbox
Powder coated finish

Model	SLMD10
Auger Tube	10" OD x 13 Gauge
Auger Flight	Continuous Cup ¼" Super Edge Flight
Drive	540 rpm Tractor PTO
Swing Auger	10" Diameter Mechanical Drive c/w Brake Winch & Intake Boot
Wheels	16" c/w Tapered Roller Bearings
Power Required	50 - 90 HP Tractor
Capacity Per Hour	4,500 - 6,000 Bushels
Standard Hopper Size	35 ¾" W x 52" L x 10 ¼" H c/w Patented Reverse Flighting

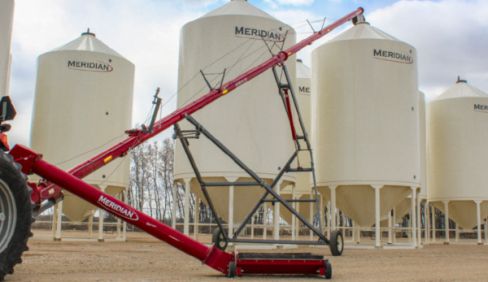

Meridian Augers SLMD10
