Meridian Augers SLMD 10-72 » Roeder Implement Inc., Iowa

Meridian Augers SLMD 10-72

/ NOT AVAILABLE

Double tap to zoom



Features

  • Continuous Super Edge Flighting
  • Unique 540 spline and hub connection for flight assembly
  • Reverse scissor on all 10” and 12” swing augers, for better transport stability
  • Original patented holder of left and right flighting drive in feed hopper
  • Reversing kit standard equipment on all 10” and 12” all swing augers
  • Torsion bar assembly to stop head end sway, when positioning auger to bins
  • Premium powder coated finish on augers and components

Specifications

Model SLMD10
Auger Tube 10" OD x 13 Gauge
Auger Flight Continuous Cup ¼" Super Edge Flight
Drive 540 rpm Tractor PTO
Swing Auger 10" Diameter Mechanical Drive c/w Brake Winch & Intake Boot
Wheels 16" c/w Tapered Roller Bearings
Power Required 50 - 90 HP Tractor
Capacity Per Hour 4,500 - 6,000 Bushels
Standard Hopper Size 35 ¾" W x 52" L x 10 ¼" H c/w Patented Reverse Flighting

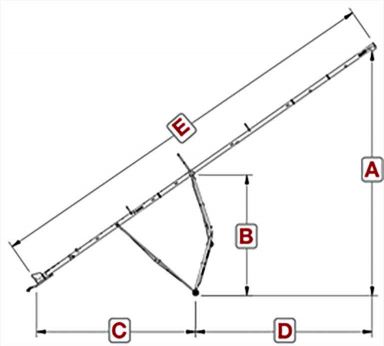

Model SLMD 10-72
A Raised 46' 1"
A Lowered 12' 2"
B Raised 25'
B Lowered 6' 8"
C Raised 30' 5"
C Lowered 36' 7"
D Raised 26' 3"
D Lowered 33' 1"
E Tube Length 72' 2"
  Lbs.
Auger Hitch Weight 1060
Auger Weight 4252
