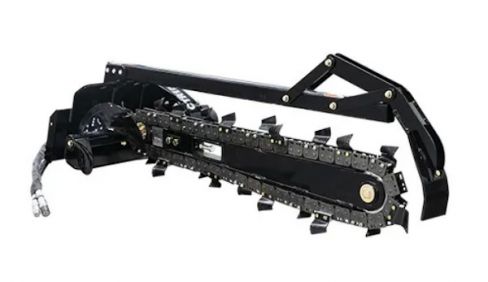

Features

Features Benefits
Quality hydraulic motor available in two volume flows Provides long life, durable construction. Two flow options allow the trencher to fit many compact loaders.
Reversible motor Helps in areas where rocks may lodge and stop chain, can back out and try again.
Boom ball bearings are selfcontained ball bearing with triple-lip seals and metal shroud covers Boom ball bearings are protected against dirt invasion and do not require greasing.
Drive bearings are self-contained, single & double row ball bearings with extra heavy duty seals. Drive bearings are protected against dirt invasion and do not require greasing.
Hardened cup teeth Increase life and productivity of the teeth.
High tensile strength trencher chain Chain stands up to rugged use.
High tensile strength trencher chain Designed for anti-flex without binding or piggybacking
Full length bolts securing teeth with spacers at every station. Helps to distribute load equally on both sides of the chain. Minimizes chain wear.
Connect under pressure hydraulic couplers Couplers are easier to connect and disconnect.
Removable spoil auger Helps dig a trench closer to fences and buildings.
Floating crumber shoe Improves the performance of the crumber shoe.
Depth indicator Helps the operator judge the depth of trench from the operator's station.
Numerous chain options Plenty of options to choose from to match your local digging conditions
Heavy frame construction Stands up to rugged use. (1/4" Thick hitch plate with 1/2" AR400 lock pin slot.)
CTR1030: 30" digging depth CTR1036: 36" digging depth CTR1048: 48" digging depth Customer can choose which trencher best suits their needs.

Specifications

Model Numbers CTR1036
Operating weight With 2 pitch cup chain 516 lbs (234kg)
Overall length 72" (1.8 m)
Digging depth at 60 degrees 36"(.9 m)
Overall width 32" (81 cm)
Overall height 33" (84 cm)
Auger diameter 12.25" (31.1 cm)
Trenching widths available 4", 6", 8" & 10" (10 cm,15.2 cm, 20.3 cm, & 25.4 cm)
Motor options High speed or High torque
Hydraulic motor flow requirements 20 gpm (75.7 lpm) max. continuous
Hydraulic motor pressure range 3000 psi (21 MPa) max.
Chain speed (at 15 gpm) 638
Chain tightener Threaded
Crumber shoe Floating, optional equipment
Depth indicator Standard (Viewable from operator platform)
Roller guide bearings at boom head Sealed, ball bearings with triple lip seals & metal shroud covers
Drive bearings Sealed, double row ball bearings with heavy duty seals
Spoil auger Removable
Chain options - numerous Cup teeth on 2 or 4 pitch, or scorpion w/cup teeth
Trencher chain 1.7" (4.2 cm) Pitch, 34,000 lb (15,422 kg) tensile strength
Trencher chain side links Anti-flex
Cup teeth Hardened with hard facing
