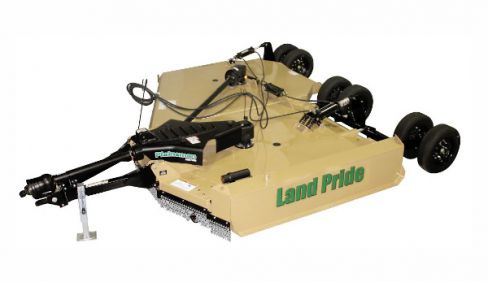

Land Pride RC3614

New Products / Land Pride / Rotary Cutters / RC3614 Rotary Cutters / RC3614

Double tap to zoom



Features

Features Benefits
Surpassed rugged
industry standards		 All Land Pride Cutters have been designed and tested and meet rigorous voluntary
testing procedures.
Factory assembled Saves customer set-up time and money. Adjustments should always be made by dealer.
250 HP divider gearbox
130 HP center & wing gearboxes		 A rugged heavy-built gearboxes capable of handling heavy-cutting applications.
Gearbox Seal Protection Gearbox bottom seal protection for longer bearing life.
2" Output gearbox shaft Large output shaft handles shock loads better.
Input driveline:
Cat. 6 CV or Cat. 5 Conventional		 Holds up to shock loads and harsh mowing conditions. Constant velocity (CV) U-joint
allows for 80 degree turns without doing damage to the driveline.
Easy Greasable drivelines Drivelines have access holes for greasing the U-joints and to grease the inner profiles.
2 or 4 Plate slip-clutch Protects drivelines and gearboxes by slipping clutches rather than twisting the driveline
when impacts are encountered.
High blade tip speed Allows clean cutting of material & even distribution. See Specifications for actual FPM.
6" Blade overlap Eliminates skipping during turns.
Good cutting capacity Can cut brushy areas with saplings up to 2".
13" Deck height Handles heavy cutting, which reduces balling-up of cut material under the deck.
10 Ga. stump jumper backed with a
1" x 4 1/2" thick blade mounting bar		 Heavy round stump jumper for protecting the gearbox seal and gearbox output shaft.
Can hold up to tough conditions.
Spindle Nut Protected Spindle nut and threads extending beyond the nut are guarded to protect against
damage from hitting solid objects.
10 gauge smooth deck top Reduces accumulation of debris and is easier and faster to clean.
1/4" side skirt Reduces debris piercing possibilities.
Self-leveling hitch Reduces drawbar wear by keeping hitch level while going through ditches.
Hinged wing section Allows cutter to follow terrain. Ideal for rough ground where hillsides, ditches, and
hollows can cause uneven cutting.
1" Solid hinge rod Larger diameter hinge gives greater strength to cutter and hinge area.
Wing transport lock Holds transport wing in the folded-up position in case of hydraulic pressure loss.
Enclosed front to rear dual leveling
rods		 Dual leveling rods enable the cutter to pull equally on the rear axle during travel over
rough terrain. Many competitors only use one leveling rod.
5-Bolt hubs 5-Bolt hubs makes the wheel assembly more durable and longer lasting.
Drain holes in wheel rims Allows water to drain from wheels mounted on the folded-up wing.
Helps prevent paint deterioration and rusting to the wheel rims.
Spring-cushioned center axle Protects unit from bumps and ground shock, cushions loads on drawbar.
Replaceable wheel spindles Wheel spindles can be replaced when damaged without replacing the entire axle.
Simply remove one bolt to replace damaged spindle.
Rephasing lift cylinders Allows cutter to be leveled using hydraulic cylinders verse mechanical turnbuckles.
7/8" Leveling rods Large diameter leveling rods provide superior supporting strength over rough terrain.
Double swivel hitch option Great for uneven terrain, reduces drawbar wear. Must use spacer washers on drawbar.
Bar-tite hitch option Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear.
LED Signal lights LED lights are bright, long lasting, and resistant to vibration, unlike incandescent
counterparts.
Wheel options Laminated tires: Eliminates flats.
Airplane tires without foam filling: Give better cushion while transporting.
Airplane tires with foam filling: Give better cushion while transporting & can’t go flat.
Deck rings (optional) Keeps blades from damaging the deck.

Specifications

Specifications & Capacities RC3614
Tractor horsepower 70 to 160 hp
Gearbox horsepower 250 hp Splitter
130 hp Center & Wing
Gearbox oil capacity 5.18 Pints: Divider Gearbox
6.76 Pints: Center deck, LH deck & RH deck spindle gearboxes
Gearbox lubrication Gear Lube 80-90W EP
Cutting capacity 2"
Machine weight
hitch weight
total weight		 Chain guards, 5 AC tires and standard clevis.
2,220 lbs.
5,620 lbs.
Blade tip speed 16,500 fpm
Hitch types Optional Self-Leveling Clevis Hitch, LP Performance Hitch,
Bar-Tite Hitch, Pintle Hitch, or Ball Hitch
Hitch jack Standard (7,000 lbs.)
Signal Lights
7 Pin connector		 LED
SAE J5560 pin configuration
Cutting width
Overall width
Minimum transport width		 13' - 6"
14' - 9 1/4"
9' - 2 1/2" (With cutting height at 2")
Overall length 17' - 6" (With cutting height at 2")
Deck height 13"
Cutting height* 2" to 12"
Lift hydraulics
center deck
right wing
3 1/4" x 8" Rephasing hydraulic cylinder with hoses, fittings & stroke control spacers.
3" x 8" Rephasing hydraulic cylinder with hoses & fittings.
Wing folding hydraulics 3" x 12" single-acting hydraulic cylinder complete with hose & fittings.
Wing flex 45o up, 20o down while cutting.
Deck material 1 - Piece, 10 gauge.
Side skirt material 1/4" plate.
Skid Shoes wing deck
center deck
weight box		 Replaceable: 1 Standard straight skid shoe and 1 AR400 leading skid shoe
Replaceable: 2 Skid shoes
Reversible & replaceable: 1 Skid shoe
4 Blades (2 per carrier) 1/2" x 4" Heat Treated Free Swinging Alloy Steel with up lift.
Blade overlap 6"
Blade bolt Keyed with hardened flat washer & locknut.
Stump jumper / blade holder 10 Gauge round dish shaped pan, reinforced with 1" x 4 1/2" blade mounting bar.
Deck ring Optional 3/8" formed and welded.
Front & rear guards Optional single chain or double chain.
Input driveline ASAE Cat. 6 with constant velocity u-joint.
Intermediate & wing drivelines Cat. 4 with slip-clutch or optional Cat. 5 with slip-clutch
Tire options 6" x 9 x 21" Laminated tires
27" x 7.75" Used aircraft tires with foam filling
29" x 9" Used aircraft tires without foam filling
Number of wheels 5 - Wheel option: 4 on transport axle and one on wing axle.
6 - Wheel option: 4 on transport axle and two on wing axle
Standard transport axle Spring-cushioned on center transport axle.
Axle fasteners 1 1/4" Greasable pins
Hubs Cast iron five-bolt hubs with tapered roller bearings and 1 3/4" shafts.
* Maximum cut height is dependent on tire options selected. Â
