Land Pride SGC1060
![](/assets/Uploads/_resampled/CroppedImage488282-Landpride-SGC1060-2020.jpg)
Double tap to zoom
![](/assets/Uploads/_resampled/CroppedImage488282-Landpride-SGC1060-2020.jpg)

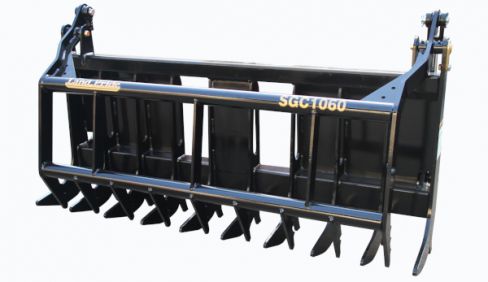

SGC10 Series Claw Grapples SGC1060
Overview:
The SGC1060 Claw Grapples make quick work of large jobs, and can be used to rake, dig, and move rocks, trees, brush, and construction debris without picking up dirt. The compact design minimizes weight while preserving lift capacity.
Get a Quote »
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send to a friend »
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Features | Benefits |
Attaches to power equipment easily | Uses Skid Steer Quick Hitch design for quick and easy attachment. |
Universal quick hitch option or old style Kubota B Series hitch option | The quick attach plate mounted grapple can be attached to a wide variety of machines. |
No mount option | This option has no mount on the back of the grapple and allows the customer to install a mount of their preference. |
Designed to protect hydraulic hoses | Hydraulic hoses routed to prevent pinching. |
Greasable hardened bushings at upper grapple pivot locations | Bushings can be replaced if needed. |
1" Pivot pins | Large diameter pins for extra strength. |
Dual hydraulic cylinders | Allows upper claw to grip the material better. |
AR400 teeth material | More than double the strength of mild steel. |
Hardened bushing at cylinder mount points | Bushings can be replaced if needed. |
High volume cage design | Can handle large volume of material. |
Rear facing lower teeth | Can be used for pulling roots or back dragging. |
Specifications
Model | SGC1060 |
Weight Universal quick hitch Kubota B Series hitch |
389 lbs. 378 lbs. |
Width | 62" |
Closed height | 34 1/8" |
Jaw opening | 39 1/2" |
Number of teeth | 10 Bottom & 9 Top |
Teeth spacing | 6 3/8" Bottom & 6 1/4" top |
Tooth thickness for upper and lower jaws | All outside teeth are 1/2" thick All teeth between outside teeth are 3/8" thick |
Working length of teeth | 11 1/2" |
Hydraulic cylinder | 2" x 6" x 1 1/8" Rod |
Maximum pressure rating | 3500 psi |
