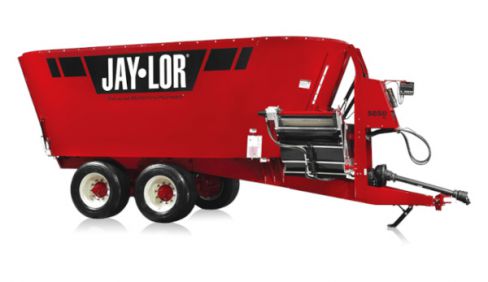

Jaylor 5850HD TMR Twin Auger

Double tap to zoom

Twin Auger HD 5850HD TMR Twin Auger
Overview:
Rugged and reliable. This time-proven heavy duty 5850HD mixer is up for the rigours of the all-day use of commercial feeding operations. Process Two 5×6 or 4, 4×5 round bales per load (3,840 lbs/1,740 kg of hay equivalent). Compatible with full complement of advanced scale accessories, fed management software, remote controls and management. Feed up to 160 head of dairy cattle, or 200 beef cows, or 800 adult sheep/goats per load per day, (depending on ration composition of course). A popular upgrade allows the included DG500 scale to automatically upload as-fed results over cellular data to the DTM cloud where they can be compared to the target, and further optimized. - Less
Rugged and reliable. This time-proven heavy duty 5850HD mixer is up for the rigours of the all-day use of commercial feeding operations. Process Two 5×6 or 4, 4×5 round bales per load (3,840 lbs/1,740 kg of hay equivalent). Compatible with full complement of advanced scale accessories, fed management software, remote c... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Standard Features:
- Square Cut Auger with Sloped Top
- Slide Plate Technology
- Tungsten Carbide Coated Knives
- Welded Mixing Chamber
- Shaker Box
- Mixer Level
- Mix Viewing Window
- 2 Restrictor Blades
- Rapid Discharge Door
- Galvanized Discharge Conveyor
- Heavy Duty Hubs
- Heavy Duty Walking Beam Axle
- Ladder and Platform
- 5 Point Weigh System
- Heavy Duty Hydraulic Jack
- Planetary Gearbox
- Easy View Oil Reservoir
- Shear Bolt Protection
- Central Greasing Bank
Optional Features:
- Angling Blade Auger
- Alexander Knives
- Vertical Knives
- Hay Ring
- Plastic Extension Upgrade
- Rear Door
- Corner Door
- Center Side Door
- 3′ Conveyor
- Door Chute
- Discharge Conveyor, Left or Right
- Dual Discharge Flat Conveyor
- Flip-Up Conveyor
- 8’ 6” Telescopic Conveyor
- Discharge Magnet
- Rubber Flap
- Dual Conveyor Boot
- Fenders
- Hydraulic Brakes
- Pneumatic Brake
- Road Light
- Battery Mount
- Safety Chains
- #8 Constant Velocity PTO
- 2 Speed Transmission
- Remote Transmission Shifter
- STAD 04 PLUS² Indicator Upgrade
- WIN SCALE² Indicator Upgrade
- TOP SCALE IC Indicator Upgrade
- Cab Remote Display
- Weight Repeater Remote Display
- Alphanumeric Remote Display
- Dina-Tel 2 for Full display
- Wi-Net Modem
- P2P Major Functions Remote
- Mixer Control by Office PC
- Software For Mixer & Feeding Management
- Motor Controller Automate Mixer Operation
Features:
- Sloped top Square-Cut Auger
- 5-Point Weigh system with DG500 Indicator
- Heavy Duty Axles, Hubs and Bearings
- Planetary Gearbox
- Heavy Duty Adjustable Cast Hitch
- Central Greasing Bank
- Shaker Box to Optimize Your Mix
- Mix Viewing Window
- Rapid Discharge Door with Self-Cleaning Tracks
- Heavy Duty Hydraulic Jack
Specifications
5850HD TMR SPECS | |
CAPACITY NO EXTENSION | 800 ft³ | 22.7 m³ |
CAPACITY 8" EXTENSION | 865 ft³ | 24.5 m³ |
CAPACITY 12" EXTENSION | 910 ft³ | 25.8 m³ |
CAPACITY 16" EXTENSION | 960 ft³ | 27.2 m³ |
WEIGHT | 17600 lbs | 8000 kg |
HEIGHT | 116 in | 295 cm |
LENGTH | 308 in | 782 cm |
DRUM WIDTH | 97 in | 246 cm |
PTO SPEED | 1000 RPM |
MINIMUM HP | 135 HP |
AUGER SPEED | 38 RPM |
NUMBER OF KNIVES | 18 |
AUGER FLIGHTING THICKNESS | 3/4 in | 19 mm |
MAX DISCHARGE HEIGHT* | 68 in | 173 cm |
CONVEYOR WIDTH | 36 in | 91 cm |
DOOR OPENING WIDTH | 42 in | 107 cm |
FLOOR THICKNESS | 3/4 in | 19 mm |
DRUM WALL THICKNESS | 1/4 in | 6 mm |
STANDARD TIRES | 445/50R22.5 (4) |
WHEEL ASSEMBLY | Walking Beam |
* with optional 72" conveyor
