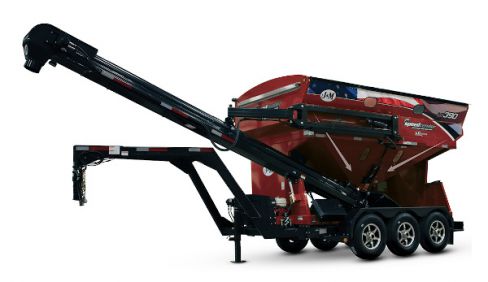

Patented Support Arm Design

The patented design supports the conveyor from the top, providing better balance and making it easier for one person to rotate from the unload to self‐fill positions. Supporting the conveyor from the top rather than underneath also allows the tank to be designed with a lower center of gravity for greater stability during transport.

Glide Right Roll Tarp

Smoother Tracking

Grooved rollers glide along the end caps for ultimate tracking, reducing the chances of misalignment.

Reduced Binding

Front and rear return springs apply even tension to reduce binding compared to systems that use a single return spring.

Easy Glide Axle System

The triple-axle undercarriage features an Easy‐Glide Axle System with the center axle positioned slightly lower, making it easier to turn and maneuver.

On-Board Controller

The on-board controller provides a secondary control option for both the standard wired and optional wireless units in case the batteries fail, the remote is misplaced or a cord is damaged. The on-board controller, which includes controls for the optional talc applicator, can be used in conjunction with the current controls, allowing the operator to switch back and forth seamlessly. Units with the Intercomp scale and wireless control have the on‐board control built into the same monitor.

Easy Glide Axle System

The triple-axle undercarriage features an Easy‐Glide Axle System with the center axle positioned slightly lower, making it easier to turn and maneuver.

 On-Board Controller

The on-board controller provides a secondary control option for both the standard wired and optional wireless units in case the batteries fail, the remote is misplaced or a cord is damaged. The on-board controller, which includes controls for the optional talc applicator, can be used in conjunction with the current controls, allowing the operator to switch back and forth seamlessly. Units with the Intercomp scale and wireless control have the on‐board control built into the same monitor.

Four Function Remote

Four function standard wired remote controls:

• Starts/Stops Conveyor
• Raises/Lowers Conveyor
• Opens/Closes Doors
• Swings Conveyor Side‐to‐Side

Miscellaneous Standard Features

• 13 hp electric start engine
• LED work lights for night time unloading
• Divided hopper for quick and easy variety changes

Measured with soybeans at 140,000 seeds per unit weighing 45 lbs.
