Features

Arched Lower Beam

An arched lower beam with trussed understructure provides maximum support for large, heavy heads.

Additional Center Support

A support in the center of the transport improves alignment of front and rear axles and strengthens the upper bar for greater load capacity.

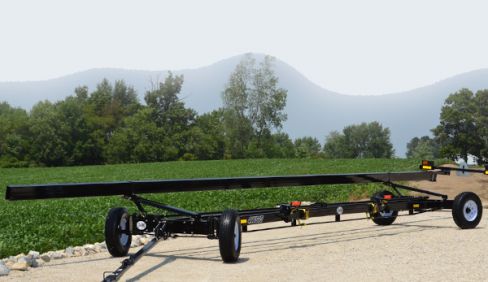

4WS15

  • 15' Turning Radius
  • 82" Center Tread Width
  • 8 Hole Hub
  • 32', 38', or 42' Steel Upper Bar
  • Quick Hitch Tongue with Spring Assist
  • Adjustable Mounts
  • Patented Tie-Down Brackets with Hook and Strap Assembly
  • Light Package
  • 16"×6" Wheels and 235/85R16E Tires

Specifications

Model 4WS15
Weight 3,120 lbs.
Capacity (Net) 13,000 lbs.
Spindle Size 2" Diameter
Wheel Size 16"x6" - 8 Bolt
Tire Size 235/85R16E
Steel Upper Bar 4"x8"
Upper Bar Length 32', 38' or 42'
Box Channel Axle Frame 8"
