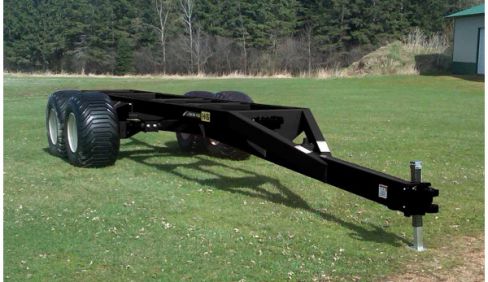

CH3126 WALKING BEAM CHASSIS

Accommodates 24’ – 26’ TOTAL LENGTH (including the unit if applicable) Forage Boxes
48,000# Capacity
34” Wide Heavy Gusseted Frame for superior strength
90″ Tread Width
Oscillating Tandem Axles for flexibility w/3.5” Spindles
10 Bolt 12,000# Hubs
Choice of Clevis or Bullnose Hitch
Jack

CH3126
OVERALL LENGTH	N/A
HITCH	CHOICE OF CLEVIS OR BULLNOSE
TIRE/RIM CHOICES	425 x 22.5 USED TRUCK TIRES w/RIMS 480/55 x 22.5 TIRES w/RIMS 600/50 x 22.5 16 PLY FLOATION TIRES w/RIMS
TREAD WIDTH	90″
SPINDLES	3.5″
HUBS	10 BOLT – 12,000#
JACK	STANDARD
BRAKES – OPTIONAL	ELECTRIC ACTIVATED OVER HYD. BRAKE SYSTEM W/CAB CONTROL BOX
