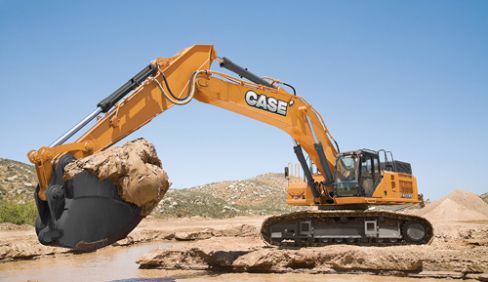

Full Size Excavators CX700B
Overview:
CASE understands that you need to be as productive as possible on the job. With increased fuel efficiency, quiet comfort, and superior serviceability, the CASE CX700B excavator gives you plenty of power and performance to get the job done. This durable machine features a powerful and efficient engine, multiple work mod... + Read More
Features
CASE CX700B Excavator
PRODUCTIVITY
Achieve high performance on the job with the CASE Tier-III certified Isuzu engine. Digging force is increased by 10 percent with the Auto Power Boost feature while overall operation is simplified with three work modes on the right hand console: Automatic, Heavy and Speed Priority.Â
FUEL EFFICIENCY
Meet current environmental standards and consume less fuel with Tier III-certified engines.
COMFORT/VISIBILITY
Attachments are easily viewable both overhead and in the in trench thanks to narrow posts on the cab and a one-piece, right-hand window with a clear view to the inside of the right track.
SERVICEABILITY
Save time, money and maximize machine uptime with reduced with extended service intervals.
Specifications
| ENGINE | Â |
| Emission Rating | Tier 3 |
| Engine make / model | Isuzu 6 WG1T |
| Net Power - hp (kW) | 463 (345) |
| Rated rpm - rpm | 1800 |
| Net Peak Torque - lbf / ft (Nm) | 1460 (1980) |
| Max speed - mph (kph) | 2.5 (4.1) |
| Max Drawbar pull - lbf (kN) | 103862 (462) |
| Â | Â |
| UNDERCARRIAGE | Â |
| Track shoe width - inches (mm) | 35.5 (900) |
| Ground Pressure - Std. Pad - PSI (kPa) | 10.8 (74) |
| Â | Â |
| HYDRAULIC SYSTEM | Â |
| Main pumps total flow - gallons (US) / min (lt/min) | 232.4 (880) |
| Relief pressure main - PSI (bar) | 4554 (314) |
| Â | Â |
| SWING SYSTEM | Â |
| Swing Speed - rpm | 6.5 |
| Â | Â |
| BOOM | Â |
| Boom length - ft/in (m) | 25 ft 3 in (7.7) |
| Arm length - ft/in (mm) | 11 ft 8 in (3550) |
| Arm breakout force normal - lbf (kN) | 55078 (245) |
| Â | Â |
| WORKINGÂ RANGES | Â |
| Max Dig Depth - ft/in (mm) | 27 ft 7 in (8400) |
| Reach at ground level - ft/in (mm) | 42 ft 4 in (12900) |
| Depth of 8' bottom - ft/in (mm) | 27 ft 2 in (8270) |
| Dump Height - ft/in (mm) | 26 ft 4 in (8020) |
| Â | Â |
| LIFTING CAPACITIES AT GROUND LEVEL | Â |
| Lift over end 10'Â (3 050 mm) radius - lbs (kg) | not published |
| Lift over end Max reach - lbs (kg) | 16928 (7679) |
| Lift over side 10' (3050 mm) radius - lbs (kg) | not published |
| Lift over side Max reach - lbs (kg) | 12668 (5746) |
| Â | Â |
| BUCKET | Â |
| Bucket breakout force normal - lbf (kN) | 71264 (317) |
| Â | Â |
| BLADE | Â |
| Blade std or opt | not published |
| Â | Â |
| DIMENSIONS | Â |
| Tail Swing Radius - ft/in (mm) | 13 ft 2 in (4000) |
| Ground Clearance - inches (mm) | 32 (830) |
| Â | Â |
| WEIGHTS | Â |
| Operating Weight - lbs (kg) | 153400 (69581) |
